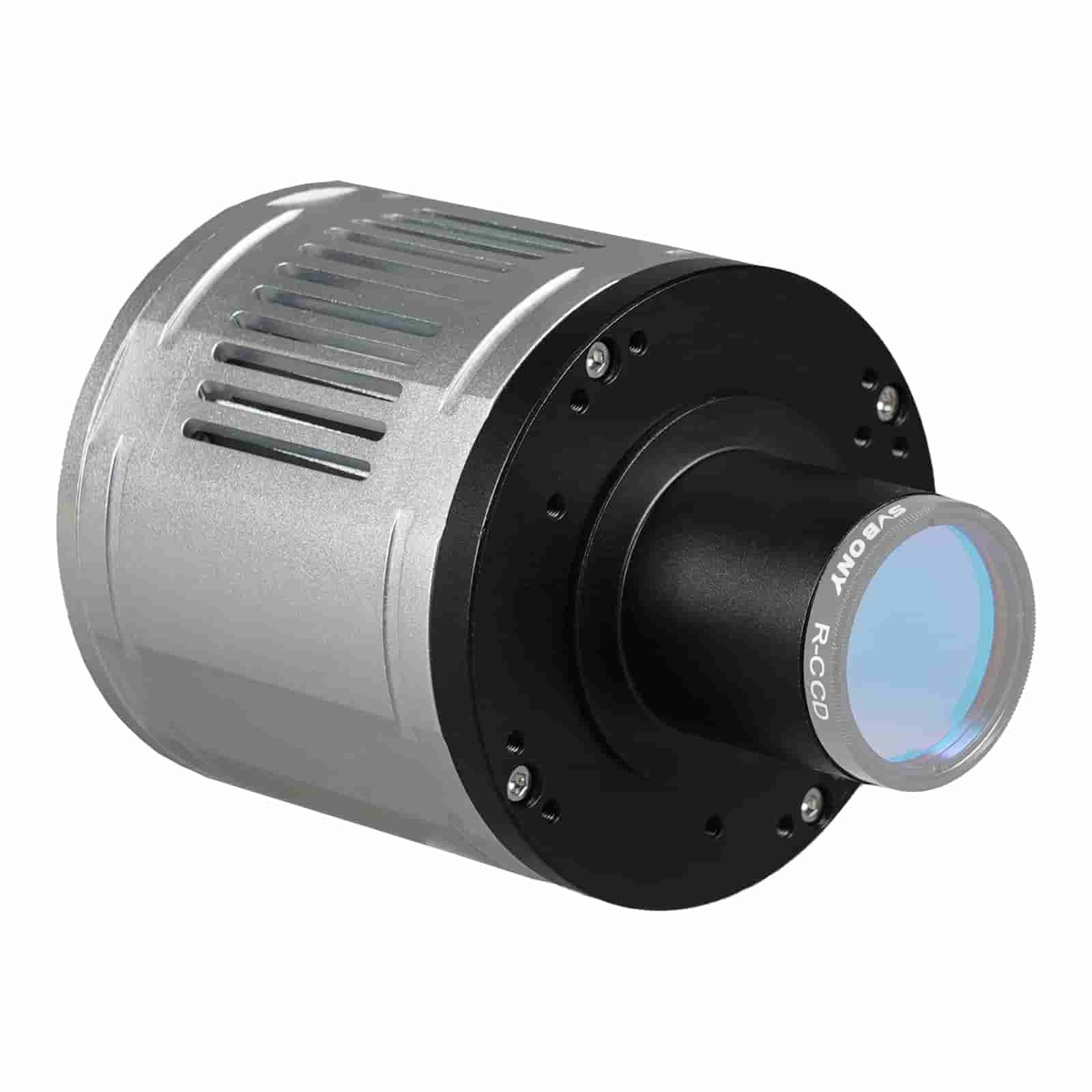

Mono Global Shutter Large Pixel CMOS Solar Camera for Planetary Astrophotography

Global Shutter: High frame rate of 120 frames per second;
Large Pixel: SC432M pixels are 9μm x 9μm for more detailed images;
1.1-inch Frame: Larger shooting area for less post-processing;
Fan Cooling: Longer exposures reduce noise for better image quality;
HCG: Turning on the HCG mode at a gain value of 140 dramatically lowers the readout noise while maintaining high dynamic range, avoiding celestial drag.
1. Global Shutter: Capturing the ever-changing moments of the sun
2. 9um Pixel: Can work at longer focal ratio and it has high sensitivity
3. 1.1-inch Frame: Can capture a complete image of the sun
4. Bulit-in Cooling Fan: To avoid overheating, the working temperature will be cool down lower 5-10 degree
5. Silver Color: Absorb less heat and ensures no noise when producing images
6. Temperature Sensor: Display the real-time temperature
7. HCG Mode: Automatic open when Gain is 140, readout noise will drop to2.4e. And dynamic range will rise to 12 stops
8. DDR3 256M Buffer: Transfer data stablely and securely
9. Full Well Depth: 100ke with stronger sensitivity
10. Reticle adjustment ring: 4 sets of screws to adjust the sensor calibration; each set consists of two screws; one push and one pull; it has a built-in high-density sponge light-blocking pad; which can block the side seam light and prevent side leakage
